IBC - Bin Loader
Easy dust free Loading and Unloading for Inline process

Application & Process :

The IPC Bin loader is used for transferring and discharging the material dust free and without human touch in pharmaceutical industries for Load powder in to HSMG bowl, hopper of tablet press, Container of blender, Load tablet in to hopper of blister pack & Coating Machine and as well as used for online sifting and milling.

The IPC Bin Loader consists of a main frame, Bin fixing arm, Hydraulic lifting device and pivot base. This main frame move 360 degree on axis and Bin fixing arm move upward and downward in the frame by hydraulic cylinder and power pack system. The moveable container/Bin bringing placed beneath the fixing arm, operate the hydraulic drive system which lifts arm with the container and it raises the container till it gets stops exactly in a position, slew the column to swivel the bin over inlet of the next processing equipment, then it could be unload by opening of butterfly on the whatever next processing equipment.

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Capacity available 30 Kg to 600 Kg.
  • Suitable for inline process with Milling and Sifter
  • Suitable for load material on High shear mixer, Blender, Tablet Press, Autocoater & Blister Pack Machines.
  • 360 degree Swiveling movement of lifting arm.
  • Loading height designed as per end user requirement and slab hight.
  • Structure cladding is S.S.304 quality and matt finished.
  • Hydraulic power pack system for lifting.
  • If the power goes off, the loader remains where it was.
  • Limit switches are provided to stop the hydraulic drive when the stroke is competed.
Technical Specification :
PBL -800
Suit Bin Capacity -Liter
Electric Power- Kw
Discharge Height
Product Container Height
Please contact us for more details.
Column Height
Total Length

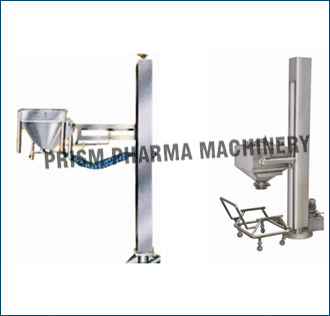

IBC Loader

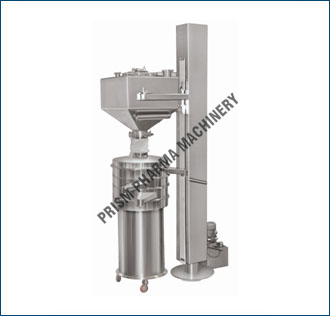

IBC Loader with inline Sifter
IBC Loader
IBC Loader with inline Sifter

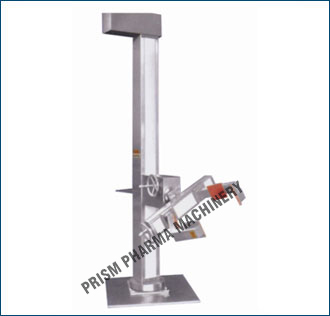

Round Drum Loader with tilting
Round Drum Loader with tilting
