Lab Multi Mill
The Milling & Size reduction Process

Application & Process :

Table top Laboratory Multi Mill is used for wet and dry granulation in pharmacy colleges, R&D institutions and pharmaceutical industry for research and development of pharmaceutical products.

It is a self contained portable unit useful for granulating, pulverizing, mixing and size reduction. The Multi mill operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction.

The material is fed in the hopper, shredded and milled through beaters consisting of knife and impact edges. The rotation speed and direction of beaters could be adjusted through control panel. The material then passes through the cylindrical screen in spiral motion which helps keeping the temperature low and avoids chocking of material during the process. The material is collected in the container placed under the hopper.

In multi mill particle size reduction is done through impact in air, on material by blades moving at high speeds, inside a cylindrical hopper.

New Design Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Easy to moveability.
  • Direct drive with A C Frequency variable speed up to 2880 RPM.
  • High operating simplicity for easy cleaning of contact parts
  • Option for different sizes of perforated sieve.
  • “CE” certificate.
PMTM - 50
Output Speed
1 Kg to 50 Kg / hour
Rotor Speed
Up to 2800 RPM by A.C frequency Drive
Beaters in Multi mill
8 Nos. with knife and Impact edge and 2 Nos. scrapers Blade.
Blade in cone mill
1 No. with cone shape
Screen Size
ID-128 mm & 64 height
Electric Motor
1 HP / 0.75 Kw
Lab Multi Mill
Lab Multi Mill with PLC Controls
Lab Multi Mill
Lab Multi Mill with PLC Controls

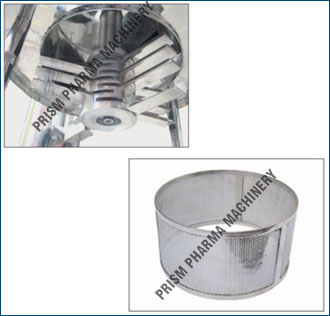

Blade & Sieve of Lab Multi Mill
Blade & Sieve of Lab Multi Mill
