IBC Bin – Intermediate Process Container
Storage and Dust free transfer Process

Application & Process :

Bin (IPC) is a container made from SS 316 sheets having cylindrical Body and taper bottom. A lid is provided on top. The lid is big so that complete washing the IPC is easy. The Bin is seated on a detachable stand or fixed leg made of SS 304 pipe stand, having forelegs and each leg is fitted with heavy duty castor wheel of special design with ball bearing and SS side frame (2 nos. fixed and 2 Nos swiveling).

Bin (IPC) are used for handling, storing, transporting and mixing of pharmaceutical powders and granules before, between and after various processes. They are designed and manufactured to be handled through their own trolley and offer the advantage to leave the trolley at floor when the container is raised up to be positioned onto process machines like tablet presses, sachet filling machines etc.

The IPC Bin loader is use for transfer the material dust free and without human touch in pharmaceutical industries for Load powder in to RMG bowl, Load powder in to hopper of tablet press, Load tablet in to hopper of blister pack & Coating Machine and online sifting and milling.

The IPC Bin Loader consists of a main frame, Bin fixing arm, Hydraulic lifting device and pivot base. This main frame move 360 degree on axis and Bin fixing arm move upward and downward in the frame by hydraulic cylinder and power pack system. The moveable container/Bin bringing placed beneath the fixing arm, operate the hydraulic drive system which lifts arm with the container and it raises the container till it gets stops exactly in a position and then it could be unload by opening of butterfly on the what ever machine.

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316/316L & non contact parts AISI 304.
  • Capacity available from 30 Kg to 600 Kg.
  • Universal bin handling and stacking system for easy automated handling and stacking of bins
  • Charging through the top opening.
  • Discharging through bottom discharge butterfly valve.
  • Without any nooks and corners for easy cleaning with food grade silicon gaskets.
  • Mirror finish from inside and adequate hopper angle for easy and complete discharge of products
  • Option for various type of IPC Bin as per customer requirement.

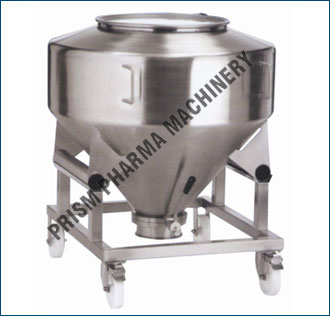

Round IBC Bin

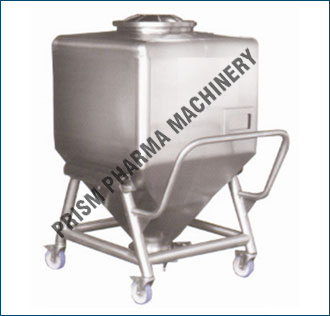

Square IBC Bin with detachable trolley
Round IBC Bin
Square IBC Bin with detachable trolley

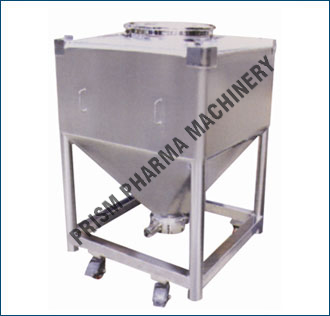

Square IBC Bin with legs

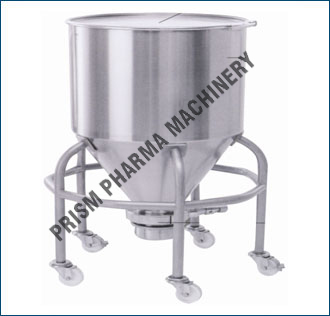

Round IBC Bin with trolley
Square IBC Bin with legs Round IBC Bin with trolley
