Mass Mixer
Uniform Mixing Process Technik for Dry & Wet Granulation

Application & Process :

The Mass Mixer is designed for uniformly mixing of dry and wet material and especially suitable for powder of Pharmaceuticals, Food, Herbals, Agro Chemicals & Chemicals.

The mass mixer consists of a rigid fabricated structure motor, gear box, mixing drum, stirrer and tilting device. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum. The material under mixing process can be monitoring through acrylic dust cover and its controls dusting and contaminations. The tilting device is provided to make easy the unloading of the material and easy cleaning of the mixing drum.

Salient Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Uniform Mixing with paddle blade stirrer.
  • Self adjusting sealing arrangement to avoid entire black particles.
  • Tilting device for easy unloading and cleaning.
  • The interlocked acrylic covers of product container, enclosed drive & Overloads relay protection.

Optional Features :

  • Flame proof electric.

Safety Features :

  • Total drive transmission system enclosed
  • Limit switch installed in the top lid ensure lid is closed
  • Overload relay Protection.
MODEL
PMM-50
PMM-100
PMM-150
PMM-200
PMM-300
PMM-500
Capacity in Kg
50
100
150
200
300
500
Brim Volume in Liter.
100
200
300
400
600
1000
Working Volume in Liter.
80
160
240
320
580
800
Stirrer RPM
30
30
30
30
30
30
Electric Motor hp / kw
3 / 2.25
5 / 3.75
7.5 / 5.6
7.5 / 5.6
10 / 7.5
15/11.25

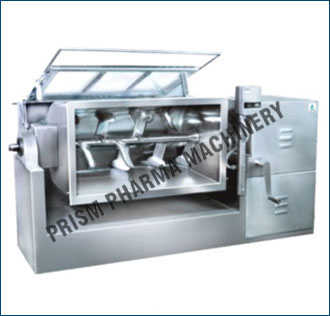

Mass Mixer-300

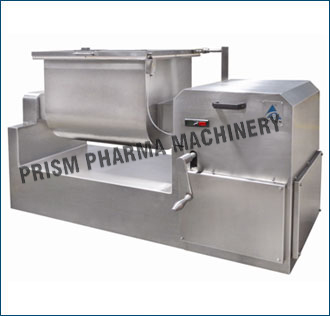

Mass Mixer-100
Mass Mixer
Mass Mixer
