Ribbon Vacuum Mixer Dryer
Low Temperature Vacuum Mixing &Drying Process Technik

Application & Process :

The Ribbon Vacuum Mixer Dryer is suitable for mixing and drying the material which can not operate at low Temperature easily oxidized, poisonous in nature. It operates at low Temperature efficiently under vacuum. It is used for raw materials drying and mixing powder or granules of Pharmaceutical Materials, Crystalline, Insecticides, Pesticides, and Food industry and heat sensitive products.

The Ribbon Vacuum Mixer Dryer consists of a jacketed cylindrical shell with rotating with specially designed Double Helical Ribbon Agitator type blade by rigid fabricated structure motor, gear box. There is provision for application of vacuum inside the shell and circulation of heating media in the jacket during the rotation of the stirrer. The large heating surface area presented by the internals of the cylindrical shell ensures uniform drying of the product, as the product gently moving while the ribbon stirrer rotates. The diffusive action induced by the mixing stirrer constantly presents a fresh layer to come into contact with the indirectly heated walls of the shell. A well designed sealing system enable maintenance of deep vacuum inside the shell, and also ensures positive circulation of a heating media in the jacket.

In operation, material is filled to the top of the outer ribbon. The shaft rotates at relatively low speed and the moving ribbons push the material back and forth mixing it. The outer ribbon rotation displaces the material from the ends to the center while the inner ribbon rotations move the material from the center to the ends. This counter-current action results in homogenous blending. Mixing is achieved in 15 to 20 minutes with 90 to 95 % or better homogeneity. The bottom discharge provided for unloading of the material and easy cleaning of the mixing drum. Specially designed self adjusting sealing arrangement of unique design is provided to ensure that no black particle enters into the mixing drum.

Salient Features :

  • Design is cGMP– Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Continuous rotation of ribbon blade, material will make continuous movement motion in the container and reach to uniform mixing and drying at low temperature..
  • Dust free operation.
  • High vacuum operation
  • Fast and uniform homogeneous mixing & draying at low temperature.
  • Solvent recovery
  • Continues vacuum maintain during process..
  • Very low value of final moisture even at low drying temperatures.
  • Option for two type design of shell 1. Cylindrical type and 2. “U” shape.
  • Continues vacuum maintenance during process.
  • Vacuumized closed system with condenser, Receiver for solvent recovery & Cyclone separator to recovery the solid particle.
  • Rapid & Complete discharge / Zero holdup after discharge
  • Heating media can be used steam/ hot water / hot oil.

Optional Features :

  • Option for two type designed of shell 1. Cylindrical type and 2.“U” shape.
  • Option for Flame Proof Electrical.
  • Option for Automatic Charging
  • Option for lump breaker.
  • Option for condenser, Receiver & Cyclone for solvent recovery.
  • Option for advance PLC Controls with HMI touch screen..

Safety Features :

  • Temperature controls, Vacuum relief Valve, Over load protection and Emergency stop.
Model
Total Capacity - Liter
Working Capacity- Liter
RPM
Motor Rating-HP
PRVMD-5
8
3-5
PRVMD -25
40
20-25
PRVMD -50
75
25-50

PRVMD -100
150
70-100
PRVMD -200
300
150-200
PRVMD -300
450
225-300
PRVMD -550
800
400-500
PRVMD -750
1100
500-750
Pl. Contact us for more details.
PRVMD -1000
1500
700-1000
PRVMD -1250
1900
950-1250
PRVMD -1500
2250
1100-1500
PRVMD -2000
3000
1500-2000
PRVMD -3000
4500
2250-3000
PRVMD -5000
7500
3750-5000

Ribbon Blade for Mixer
Ribbon Vacuum Mixer Dryer with Cylindrical Shell-1000L
Ribbon Blade for Mixer
Ribbon Vacuum Mixer Dryer

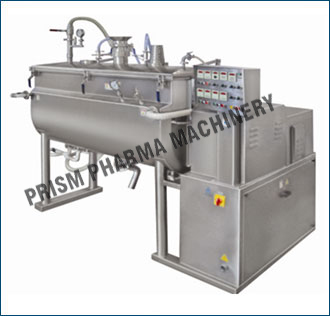

Ribbon Vacuum Mixer Dryer -1800L- “U” Shell Type

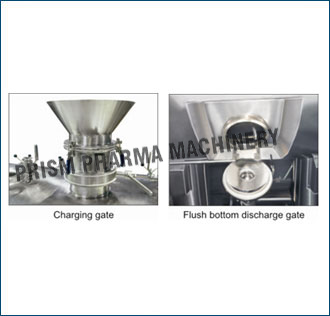

Charging Funnel at Top Lid & Discharge gate
Ribbon Vacuum Mixer Dryer
Charging Funnel at Top Lid & Discharge gate
