Lab Cone Mill
The Wet Milling & Size reduction Process

Application & Process :

Table top Laboratory Cone Mill is used for wet granulation in pharmaceutical industry, pharmacy colleges and R&D institutions and for research and development of pharmaceutical products.

It is a self contained portable unit useful for granulating, mixing and size reduction. The Cone mill operates on the principle of Rubbing force by cone blade and rotating within a selected cone screen to get the required size reduction.

The material is fed in the hopper, shredded and milled through cone blade consisting of Cone Blade and Cone Sieve. The rotation speed and direction of cone blade could be adjusted through control panel. The material then passes in discharge hopper through the cone screen in gravity force which helps keeping the temperature low and avoids chocking of material during the process. The material is collected in the container placed under the hopper.

In cone mill particle size reduction is done through rubbing of material by cone blades moving at high speeds, inside a cone sieve.

New Design Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Uniformly granulation & fewer fines.
  • Wet materials size reduction.
  • Easy movability.
  • Cone mill with cone type Blade and Cone Sieve.
  • Direct drive motor with A C Frequency Variable speed up to 2800 RPM.
  • High operating simplicity for easy cleaning of contact parts
  • Option for different sizes of perforated sieve.
MODEL
PCM - 50
Output Speed
1 Kg to 50 Kg / hour
Rotor Speed
Up to 2880 RPM by A.C frequency Drive
Blade in cone mill
1 No. with cone shape blade
Sieve
1 No. Cone shape perforated sieve
Screen Span Dia,.
Span Dia. 125 mm & 75 height
Electric Motor
1 HP / 0.75 Kw

Lab Cone Mill

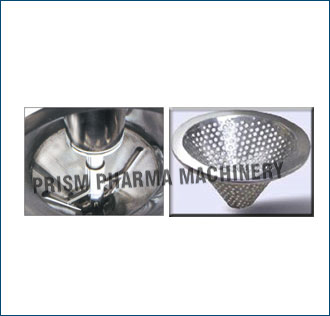

Blade & Sieve of Lab Cone Mill
Lab Cone Mill
Blade & Sieve of Lab Cone Mill
