Lab High Shear Mixer Granulator - Lab RMG
Dry and Wet Powder Mixing Technic

Application & Process :

The Prism compact LABOmix High Shear Mixer Granulator is a multi purpose processor equally suitable for high speed dispersion of dry powder, aqueous or solvent granulations and effervescent products and melts pelletization.

Prism NewLABOmix-High Shear Mixer granulator series is characterized by the compact construction, modern design and the entire user and user friendly attributes which form the ergonomics design aspects are essential for a wide range of application.

The overall concepts of the NewLABOmix steam from similar of process based on production model and common needs of consistent processing and ease for operation and cleaning. The mixing bowl designed with shallow and wide diameter for guarantee a consistent product vertex mixing by main impeller and granulated by chopper blade. A typical 3 minute dry mix operation than granulation by adding binder manually or spraying unit with pressurized. A free flowing granulate is produced after 3-5 minute and the granules are than rapidly discharge.

New Design Features :

  • Designed strictly compliance with the stipulation of cGMP.
  • Product contact parts AISI 316/ 316 L Quality & Food grade silicon..
  • High speed mixing, homogenizing, humidifying, granulating and pelletizing process.
  • Easy to install, operate, clean, convenient & user friendly.
  • Mobile self-contained unit and Plug 'n' Play concept for easy installation
  • Variable Speed for main impeller and chopper by VFD.
  • Air purging system for seals of main and copper impeller.
  • Product contact parts are mirror finished and non contact parts are matt finished.
  • Option Available with Interchangeable Bowl for 1 kg, 3 kg and 5 kg.
  • Optional: Interchangeable bowls, Jacketing for heating & cooling, Spraying unit, Explosion proof motor and push button, automatic advanced PLC controls with HMI Touch screen.

Safety Features :

  • Total drive transmission system enclosed
  • Limit switch installed in the top lid ensure lid is closed
  • Air pressure switch installed to ensure pressure is in limit.

Techical Specifications :

MODEL- Lab & Pilot
PRMG-5
Interchangeable
PRMG-10
PRMG-15
PRMG-25
Bowl Volume in Liter
2.5 / 7.5 / 12
25
38
50
Working Capacity in Kg.
1   /  3    /  5
10
15
20
Main Impeller Speed- RPM By VFD
50 to 150
50 to 150
50 to 150
50 to 150
Chopper  Impeller Speed RPM
500 to 2800 Variable
1400/ 2800 Dual
1400/ 2800 Dual
1400/ 2800 Dual
Total Electric Power
2.62Kw
5.75 Kw
5.75Kw
1.75 Kw

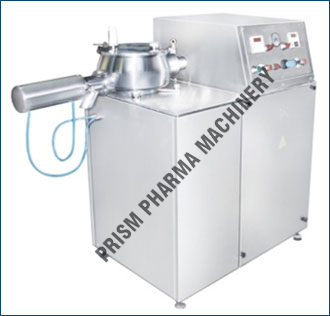

High Shear Mixer Granulator- RMG-8L

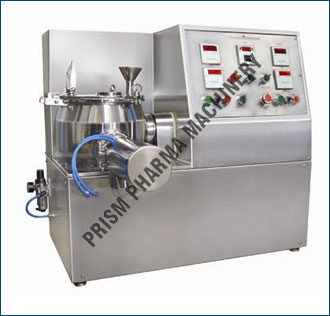

High Shear Mixer Granulator- RMG-25L
High Shear Mixer Granulator
High Shear Mixer Granulator

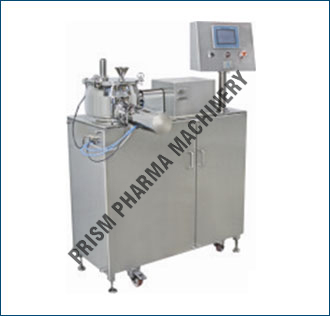

High Shear Mixer Granulator- RMG-10L with PLC Control

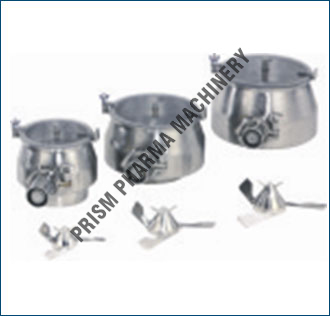

Interchangeable Bowl of RMG
High Shear Mixer Granulator
Interchangeable Bowl of RMG
