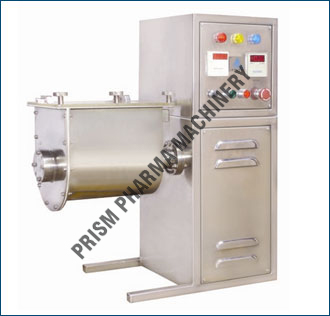

Lab Mass Mixer /Lab Ribbon Mixer / LabPaddle Mixer
Uniformed Dry & Wet Mixing Technic

Application & Process :

The Laboratory Mixer is designed for uniformly mixing of dry and wet material and especially suitable for Pharmaceutical, Food and chemicals industries.

The mixer consists of a rigid fabricated structure motor, gear box, mixing drum, stirrer and tilting device. The mixing drum complete with stainless steel body, stirrer and tilting device. The mixing drum complete with stainless steel body, stirrer and sealing arrangement. The drive of mixing paddle is through suitable gear box and motor. The tilting device is provided to make easy the unloading of the material and easy cleaning of the mixing drum. The Mixing stirrer can be provided different shape Ribbon type / Paddle type according to machine.

The material under mixing process can be monitoring through acrylic dust cover and its controls dusting and contaminations. The hinged features allow flexibility of adding solution through cover during in operation. The acrylic dust cover is so interlocked that ensure container is totally closed.

New Design Features :

  • Design as per stringent cGMP requirements.
  • All contact parts SS 316 quality.
  • Container capacity 10 Liter/5 kg.
  • Tilting device for easy unloading cleaning.
  • Self adjusting sealing arrangement to avoid entire black particles.
  • Uniform Wet and Dry mixing.
  • In locked safety mixing process.
  • Option for different blade, Mass mixing blade, Paddle blade and Ribbon Blade.
Mass Mixer / Ribbon Mixer/ Paddle Mixer

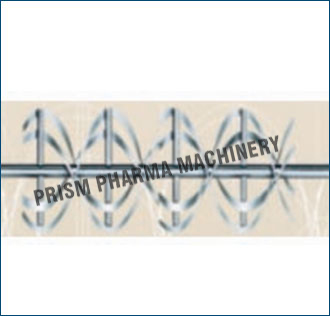

Ribbon Blade
Mass Mixer / Ribbon Mixer/ Paddle Mixer
Ribbon Blade

Paddle Blade
Paddle Blade
