Lab Oscillating Granulator
The Uniform Size reduction Process

Application & Process :

The Laboratory Oscillating granulator is for wet and dry granulation widely used in research laboratories of pharmaceutical, food and chemical industries.

Product is charged from the top through in feed hopper and material falls on the rotor lades. The particles are broken by a set of oscillating bars arranged in cylindrical form over a screen of suitable mesh. Due to the knife edges mounted on rotor, the downsizing of particle takes place and through sieve material gets pushed outward from the bottom opening.

New Design Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Uniformly granulation & fewer fines.
  • Simple & compact Design.
  • Easy to operate, clean, convenient & user friendly.
  • High Speed oscillation motion for very high output.
  • Easy installation to online granulation with Roll compactor & Rapid Mixer Granulator & Bowl of Fluid Bed Dryer.
  • A C Frequency drive for variable Speed.
  • Zero dusting & maintenance free.
MODEL
POG-50
Output
1 Kg to 50 Kg / hour
Oscillating Speed
180 per minute
Electric Motor
0.5 HP
Electric Power
0.37 Kw
Drive
Motor coupled with Helical gear drive

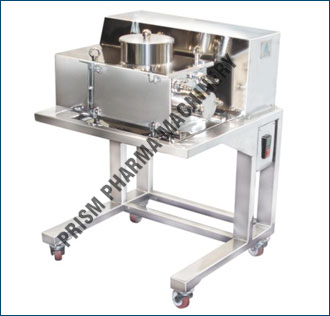

Lab Oscillating Granulator

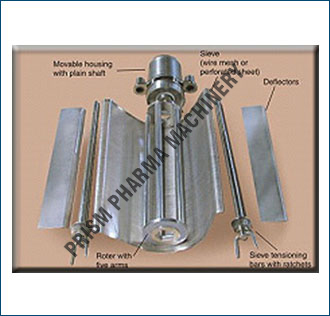

Rotor & Sieve of Oscillating Granulator
Lab Oscillating Granulator
Rotor & Sieve of Oscillating Granulator
