Lab Vibro Sifter
The Sifting & Grading Process

Application & Process :

The Laboratory Vibro Sifter, due to its high capacity and compact size, is suitable for processing small batch of pharmaceutical materials and in research of pharmacy colleges, research and development laboratories.

The machine is embedded with complete S.S. Fabrication structure fitted with Vibro motor and 12” Sieve and movable on 3 Nos. castor wheel for easy movability.

It is designed on the principle of ‘Gyratory Motion”. The material is fed on to the centre of the screen and then travels on a spiral path to the periphery whilst the fine particles fall through. The material being screened is therefore drawn apart automatically and no additional force is exerted to separate coarser particles. The sieving is done gently and with little abrasion.

New Design Features :

  • Design is cGMP – Current Good Manufacturing Practices compliance.
  • All contact parts AISI 316 & non contact parts AISI 304.
  • Easy Movability
  • Noiseless and Maintenance free.
  • Low power consumption.
  • High Operating simplicity for easy cleaning of contact parts.
  • Easy accessibility for setting, maintenance and cleaning.
  • Available vide range of sieve.
MODEL
PVS-12”
Output kg / hour
1 to 10 kg/hr Depends on sieve and product
Screen Diameter
300 mm
Electric Motor
0.25 Hp / 0.18 Kw
Charging height
1125 max. approx
Discharging height
843 max approx

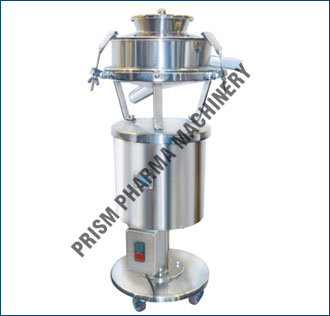

Lab Vibro Sifter

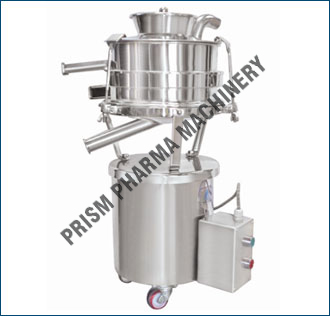

Lab Vibro Sifter- Double Deck
