Impex Pulveriser
Super fine Pulverizing process of Herbals

Application & Process :

The Impex pulveriser is a perfect to make powder in micron size of different material and herbals.

Pulverization in this is done by continuous impact of rotating hammers against grinding liners. Raw material feed in rotary feeder from inlet hopper and spills into the grinding chamber. Strong hammering breaks lumps into small particles. At the same time air stream blowing through the pulveriser carries the ground material towards outlet. Whizzer classifier doesn’t allow oversize particles to pass and returned them into the grinding chamber. They are re-grind and reduced up-to acceptable size. Fan is working for convey particles passed from Whizzer and send it to cyclone collector. Three-way connection Cyclone & dust collector (fabric type) provides clear air to the mill and keeps entire operation free from dust too.

Miracle mill/ Hammer Mill are useful for high production. Fineness isn’t possible to achieve as much as pulveriser

Miracle mill / Hammer mill is similar to impex pulveriser. Perforated liner is fitted in bottom half of grinding chamber. Whole diameter and pitch can be decided based on mesh size requirement. Whizzer isn’t requiring because material is classified by perforated liner.

Salient Features :

  • Designed as per cGMP – Current Good Manufacturing Practices & Non GMP STANDARD Model.
  • Contact parts in AISI 316 OR AISI 304 as desired by customer.
  • High precise pulverizing process of the material in micron size with impact effect.
  • Available in 50 kg to 500 kg capacity.
  • Main body (grinding chamber) made out of CI. It includes replaceable grinding liner / plates of different require shapes for different material. Metal trap would remove heavy foreign material.
  • Automatic feeder having with variable speed star Feeder is provided for controlled feed.
  • Rotor is made from thick plate fitted on main shaft. Hammers are hinged on it. It prevents breakage of hammers. Main shaft is supported by heavy-duty bearings fitted in dust tight housings.
  • Whizzer is conical shaped having adjustable whizzer blades for adjust desire fineness in the range of 100-300 meshes, depending upon the material.
  • Blower is heavy-duty long life bolted blade to get replace quickly.
  • Cyclone Collector is made for excellent and efficient separation.

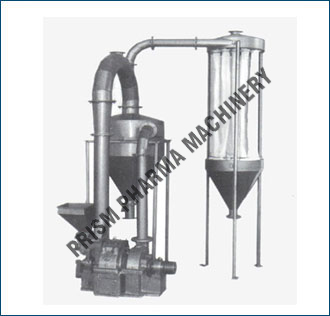

Impex Pulveriser Machine
Impex Pulveriser Machine
